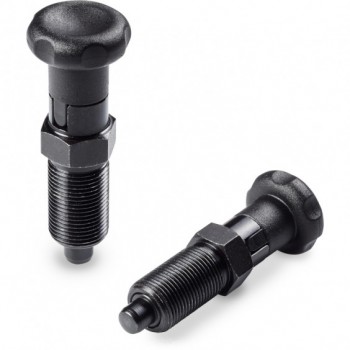

Knob-style Spring Plunger With Locking Position and Fine Pitch Thread

Description

Materials:
(4) Reinforced polyamide lobed knob. Cannot be removed.Oils and greases resistant.
W810:
(3) Zinc plated steel spring.
(2) Turned high resistant steel plunger body, with fine pitch thread and hexagonal ring.
(1) Hardened high resistance steel turned plunger pin.
W810CIN:
(3) Stainless steel spring, (Aisi 301).
(2) Turned stainless steel plunger body, with fine pitch thread and hexagonal ring, (Aisi 303).
(1) Stainless steel turned plunger pin, (Aisi 303).

Surface:
(4) Satin.
(1-2) Glossy.

Colour:
(4) Black (RAL 9011).
W810:
(1-2) Black-oxyde.
W810 CIN:
(1-2) Natural.

ATTENTION:
We recommend making the lodging hole for the plunger nose with external tolerance H7.

SPECIAL REQUESTS:
On request and for special quantity the knob could be supply with colours as shown on colour table page. [pageTitoloTabellaColori.
